EQM100-5
Radio: Bluetooth SIG v5.3
Output Power: +6dB
Receiver Sensitivity: -96dB
Antenna: U.FL or PCB
Dimensions: 12 x 20/16 x 1.6 mm
Certification: FCC,CE,IC,UKCA,RCM,MIC,KC.SRRC,WEEE, RoHS,Thread certified component,matter
EH-MC25
Radio: Bluetooth 5.2
Output Power: +7.5dB
Receiver Sensitivity: -97dB
Antenna: Ext Antenna or PCB
Dimensions: 8 x 8(13) x 1.8 mm
Certification: BQB,FCC,CE,IC,RoHs

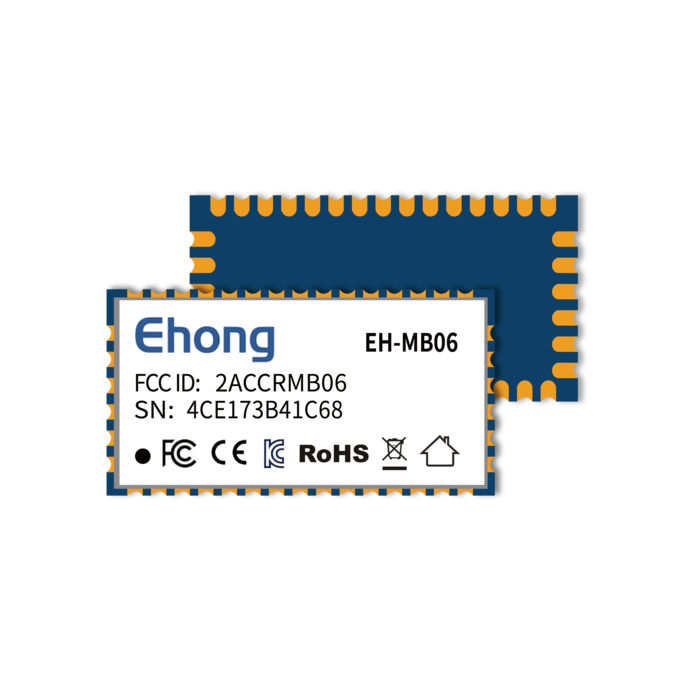

EH-MB06
Radio: Bluetooth 5.1
Output Power: +7.5dB
Receiver Sensitivity: -90.5dB
Antenna: Ext Antenna
Dimensions: 23.24 x 11.93 x 2.2mm
Certification: BQB,FCC,CE,IC,KC,RoHs

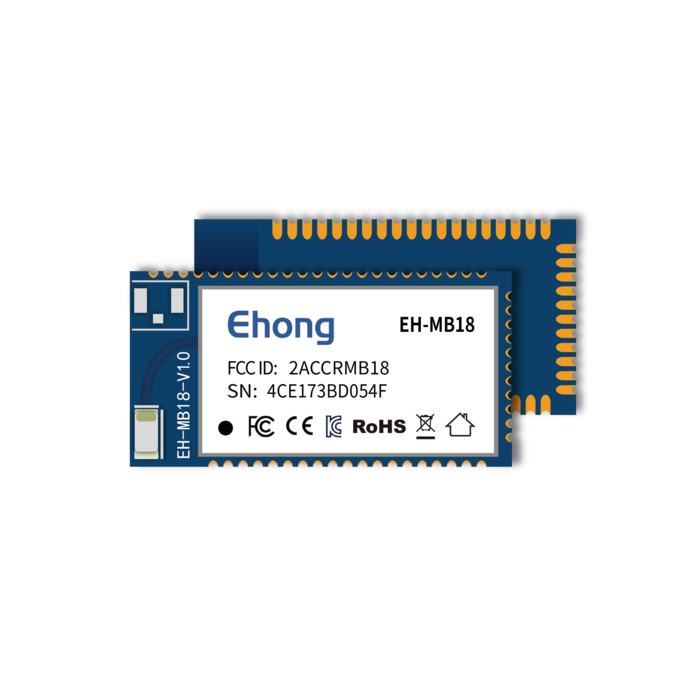

EH-MB18
Radio: Bluetooth 4.2
Output Power: +8dB
Receiver Sensitivity: -90dB
Antenna: Chip or U.FL
Dimensions: 30.4 x 15.26 x 2.4mm
Certification: BQB,FCC,CE,NCC,KC,SRRC,Rohs
EH-MB630
Radio: WiFi+Bluetooth
Output Power: +4dB
Receiver Sensitivity: -96dB
Antenna: Chip or U.FL
Dimensions: 30*24*2.2mm
Certification: SRRC
EH-MC10
Radio: Bluetooth 4.1
Output Power: +7.5dB
Receiver Sensitivity: -92.5dB
Antenna: Chip or U.FL
Dimensions: 17.70 x 11.95x 2.2mm
Certification: BQB, FCC, CE,KC, IC,NCC,TELTEC,IFETE,SRRC, RoHs
EH-MC17
Radio: Bluetooth 5.0
Output Power: +8dB
Receiver Sensitivity: -97dB
Antenna: Chip or U.FL
Dimensions: 17.70 x 11.95x 2.2mm
Certification: BQB,FCC,CE,IC,TELTEC,ENACOM,SRRC,Rohs
EH-MC30
Radio: Bluetooth 4.2
Output Power: +4dB
Receiver Sensitivity: -93dB
Antenna: integrated antenna
Dimensions: 15.72 x 9.15x 2.2mm
Certification: BQB,FCC,CE,IC,RoHs
Prev 1 2 Next
