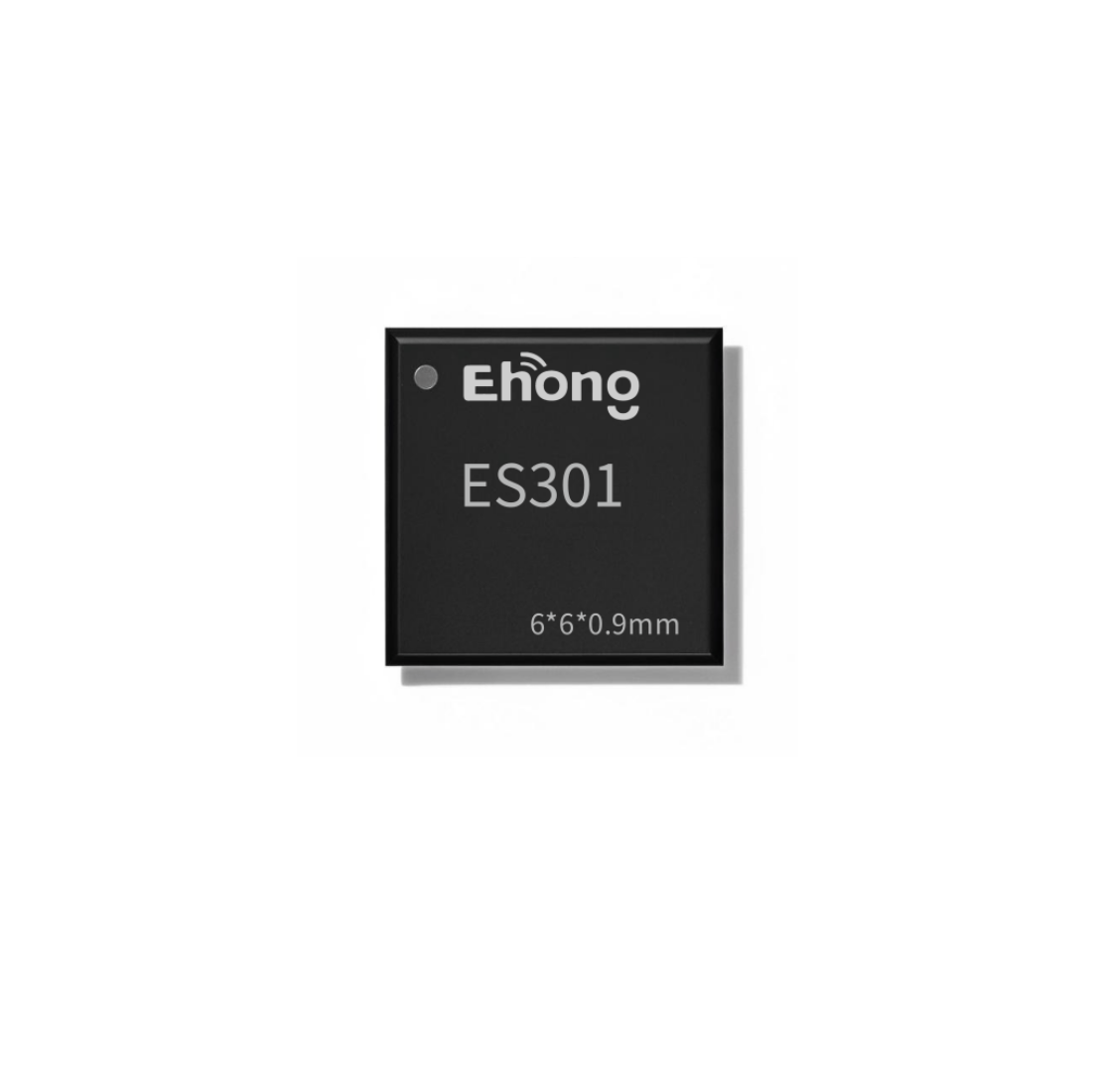

ES301

share
WeChat
QQ
Wireless versions Bluetooth 5.4
Transmission power +8dB
Receiver sensitivity -97dB
Antennae integrated antenna
Electricity 1.7V-3.6V
Weights 0.05g
Sizes 6*6*0.9mm
Power consumption 4.6mA
Hardware interfaces 2 Chanel 12bits ADC
GPIO 25
Accreditation BQB, FCC, CE, IC, RoHs

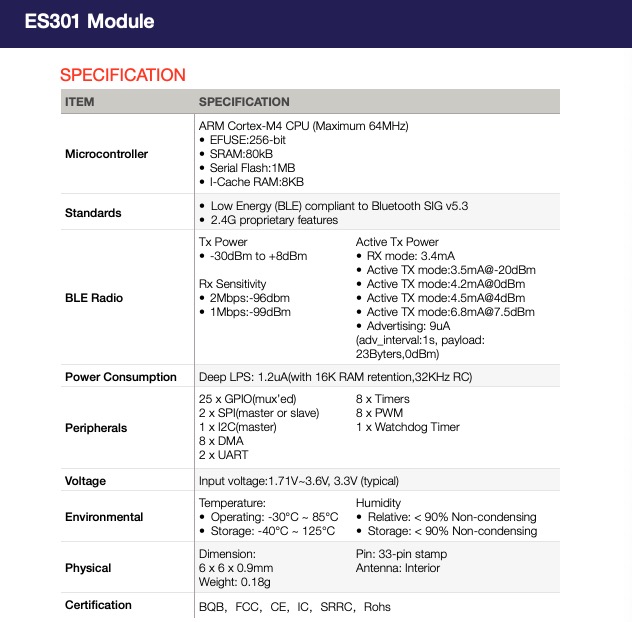

Module IntroductionModule parameters

ES301 is a low-power Bluetooth® 5.3 module . With ultra-small size and powerful features. Powered by a highly efficient 64MHz ARM® Cortex ™ M4 CPU and 1MB Flash + 80KB RAM.


ES301 comes with a high-performance built-in antenna, which can connect up to 60m in an open environment. No external antenna is needed, and the ultra-small size of 6.0 * 6.0 * 0.9mm can reduce the PCB area requirements of customers' products and help customers realize ultra-small products. At the same time, the ES301 module can optionally support external antennas to meet customer requirements for antenna performance and layout in different occasions.


After purchasing ES301, we will provide free technical support for the APP of the IOS system or the APP of the Android system. It can supports FMN of Apple and FMD of Google.




文件下载
ES301 Product Brief V1.0.pdf
492.7KB
